Customized 8 Stations Hydraulic Power Units-

Customized 8 Stations Hydraulic Power Units-
Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units-
Temel bilgi
Menşe yeri: Ningbo Çin
Marka adı: TianDi
Sertifika: CE,ISO
Model numarası: TDDL-
Min sipariş miktarı: 20 adet
Fiyat: negotiable
Ambalaj bilgileri: Karton kutularda ve daha sonra ahşap paletlerde paketlenmiştir.
Teslim süresi: 15 iş günü
Ödeme koşulları: T/T, Western Union, L/C
Yetenek temini: Ayda 2000 adet
En iyi fiyat Şimdi başvurun
Ürün adı: 8 İstasyonlu Hidrolik Güç Üniteleri Çalışma baskısı: 180Bar
Yağ portunun boyutu: G3/8” Tank boyutu: 4L'den 12L'ye
Valf: yön valfi Akış hızı: 2L'den 8LPM'ye
Gerilim: DC24V Montaj türü: yatay
Vurgulamak:

customized hydraulic power units

,

8 station hydraulic power units

,

hydraulic power units with warranty

Customized 8 Stations Hydraulic Power Units
Product Description
This Hydraulic Power Unit operates double acting cylinders, complete with 8pcs of CETOP 03 solenoid directional valves.
  • DC Hydraulic Power Unit with DC24V 1.6Kw electric motor
  • 2.1cc/r gear pump
  • 25Litres square steel tank with drain plug
  • Complete with suction filter, return oil pipe and air breather
  • Horizontal mounting
  • Max pressure: 2000PSI
  • Relief valve: RV2-08 (set pressure 2000PSI, adjustable from 50-210 bar)
  • Flow Rate: 5 l/min
  • Standard relief valve and check valve
  • Oil Port size: 1/4"BSP
  • Suitable for all kinds of double acting hydraulic cylinders
Technical Specifications
Specification Details
Motor DC24V 1.6Kw
Duty S3
Pump (cc/r) 0.75, 1.6, 2.1, 2.5, 3.2, 4.2, 4.8, 5.8, 7.0
Oil Tank (L) Plastic or Steel: 2, 4, 7, 8, 11, 13, etc.
Max. Pressure 210bar
Flow Rate 2LPM to 8LPM
Oil Port G3/8"
Valve 8 pcs Directional Valve
Tank Steel, 8L
Applications
CNC, Truck

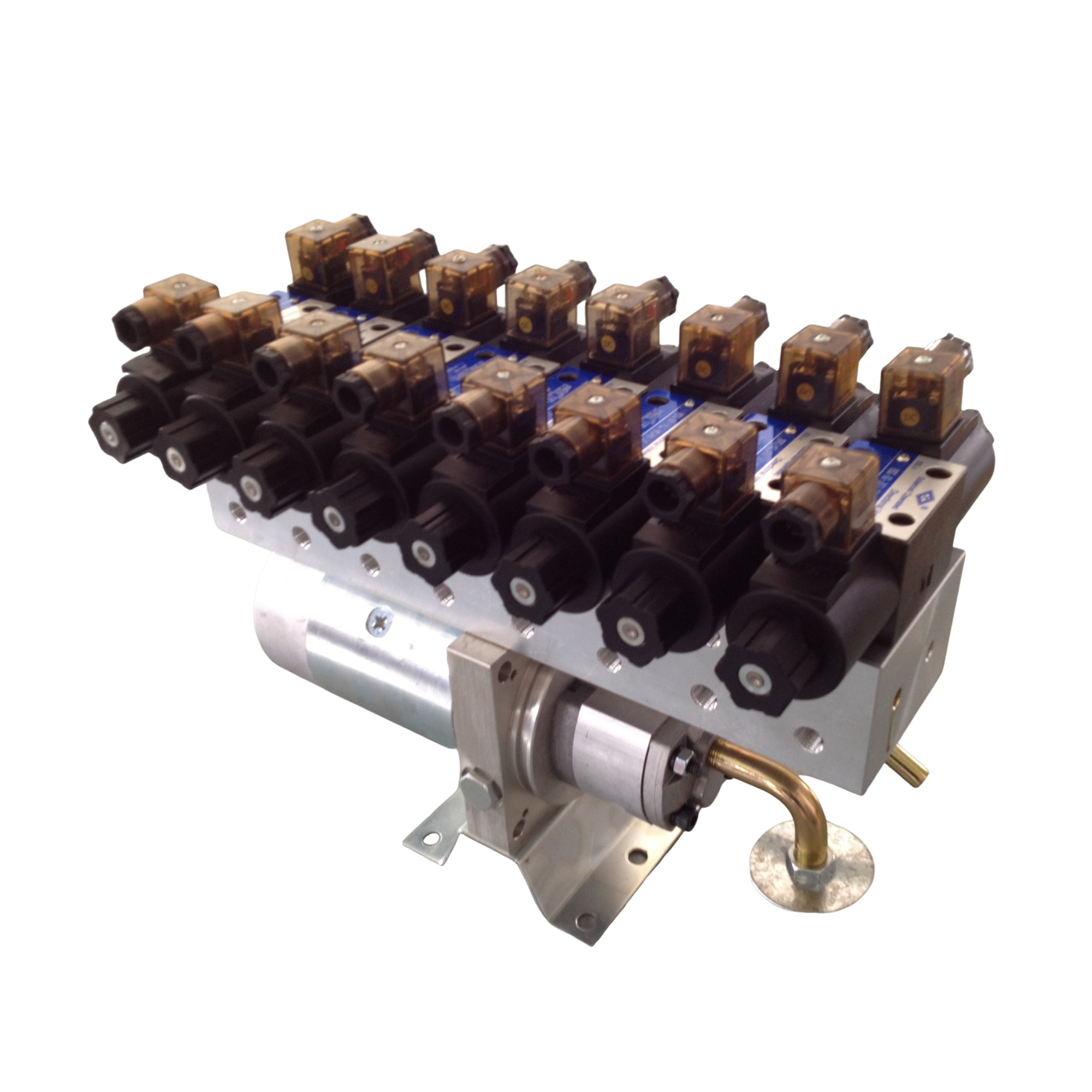

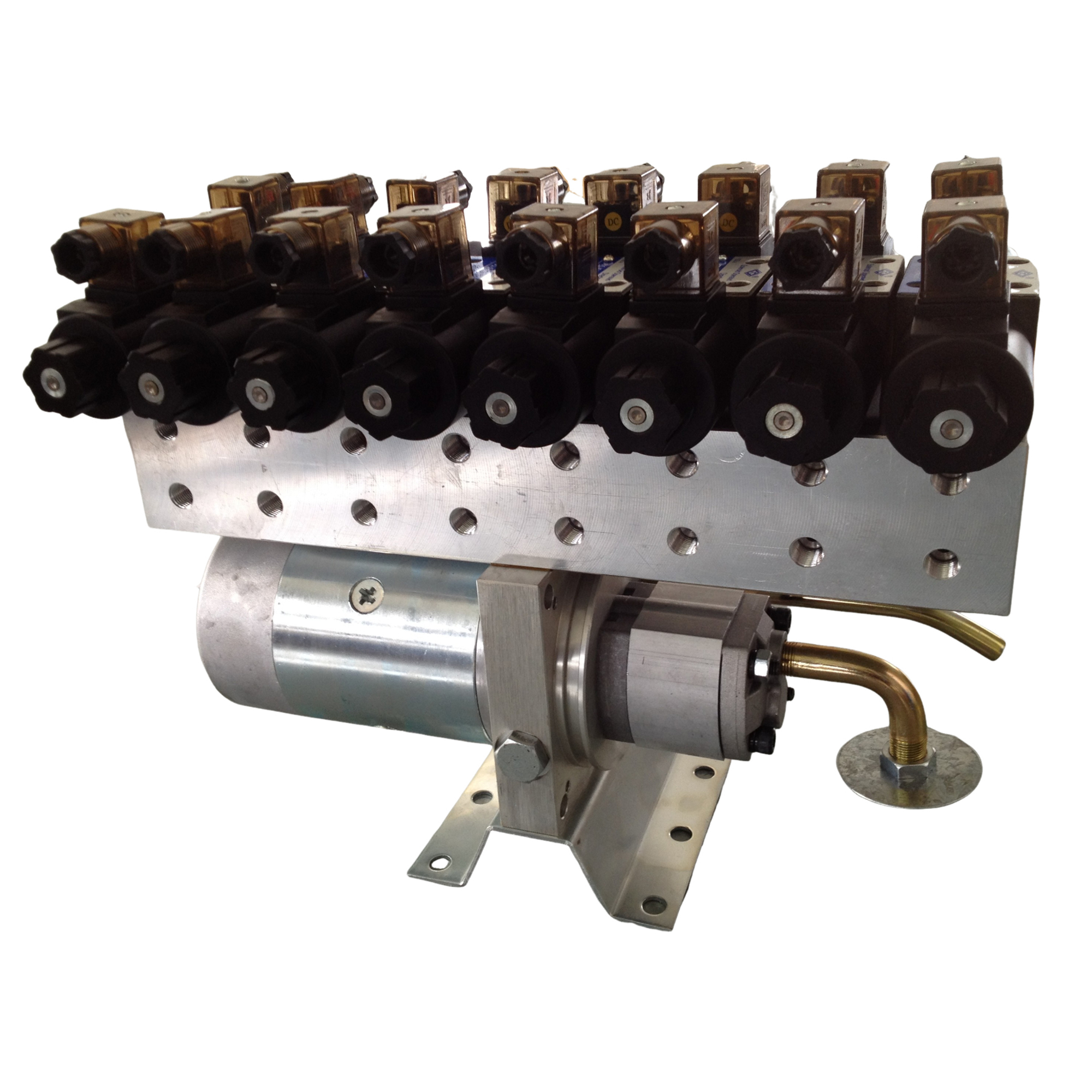

Product Images
Customized 8 Stations Hydraulic Power Units- 0 Customized 8 Stations Hydraulic Power Units- 1

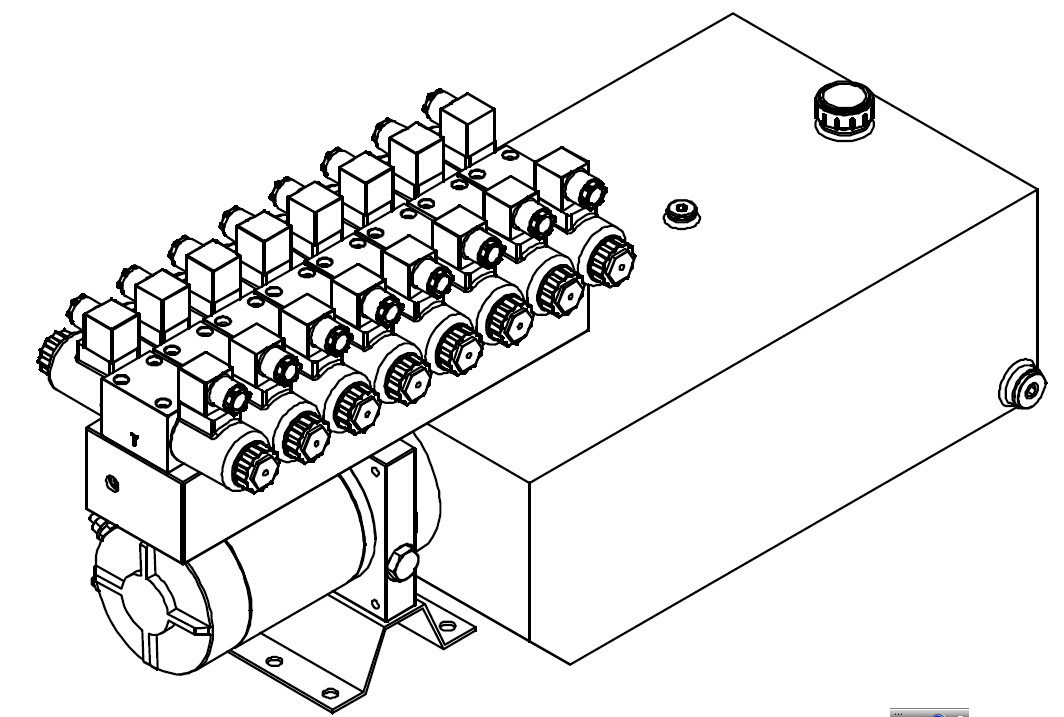

Technical Drawing
Customized 8 Stations Hydraulic Power Units- 2
Competitive Advantages
  1. TIANDI hydraulic is one of the earliest manufacturers of hydraulic packs and units, with a professional team for raw material purchasing to control costs. Our well-trained workforce ensures competitive pricing.
  2. Our export department staff is highly professional and efficient, experienced in export processing and documentation. They are available to assist with any product or process-related questions.
